iBasso - AMP17

Amp Card for iBasso DX340

₹ 23,999

Inclusive of all taxes

DELIVERY

Dispatches in 48 hours

RETURNS & WARRANTY

7 Day Replacement Guarantee

1 Year Warranty

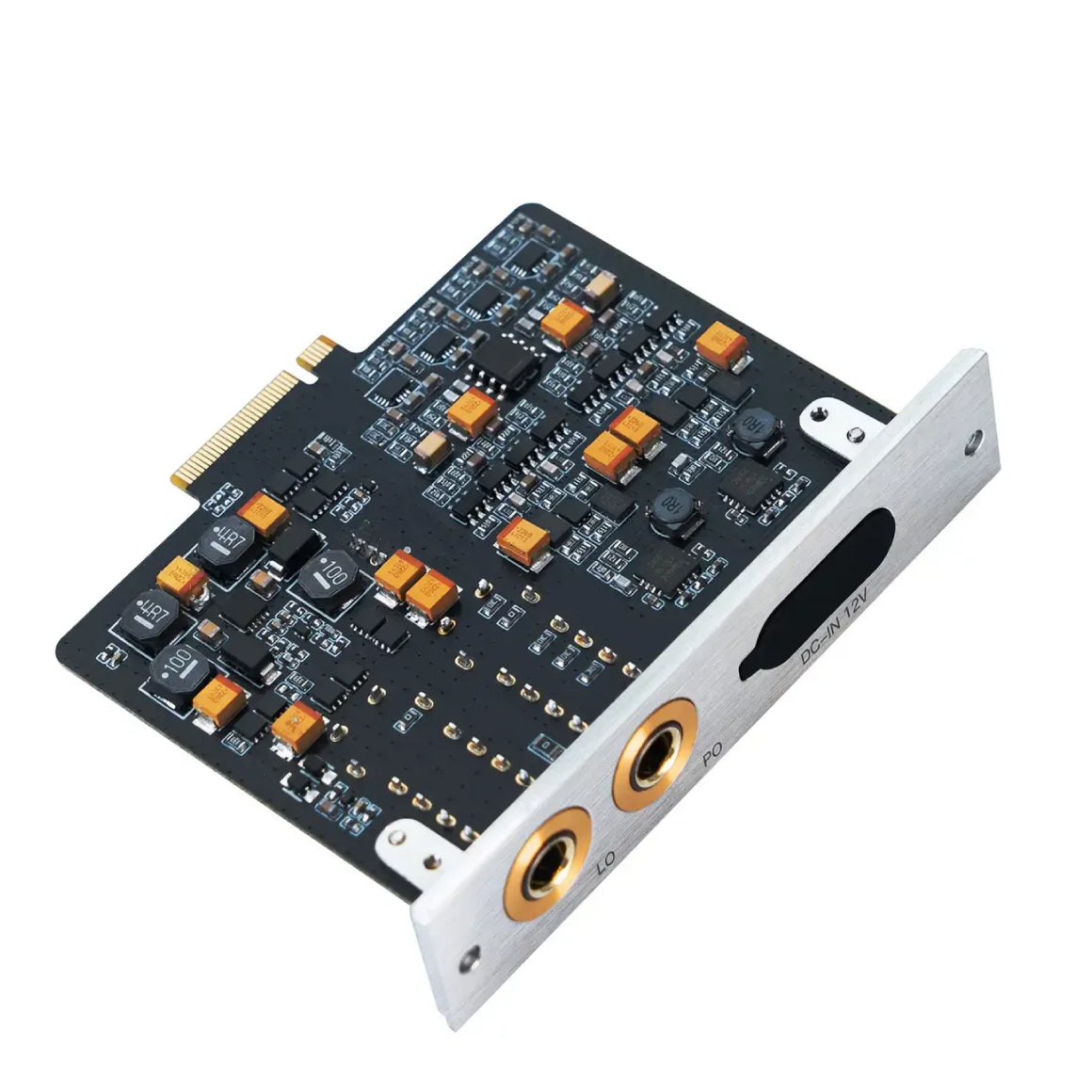

iBasso Introduces The AMP17 - An Exceptional Amp Card For DX340 Series

iBasso presents the AMP17 marks a breakthrough as the first portable headphone amplifier to incorporate gallium nitride (GaN) technology. In the realm of high-end portable audio, GaNFETs outperform traditional MOSFETs and bipolar transistors with electron mobility reaching up to 2000 cm²/V·s. This allows for higher electron velocity and significantly lower conduction losses, especially at high frequencies, setting a new standard in speed, efficiency and performance.

Embeds GaNFET Architecture High Current Output With Ultra-Low Resistance

iBasso AMP17 combines low internal resistance and output impedance with GaNFET technology to deliver high current output and precise control over low-impedance headphones. Its high-frequency operation reduces ripple interference for a cleaner soundstage, while ultra-fast switching ensures low distortion and smooth, natural tonality. The result is dynamic, detailed, and emotionally engaging audio even during complex passages.

Enhanced Power Supply For Peak Performance & Supply 12V DC External Power Input

iBasso AMP17 supports a 12V DC external power input, building on iBasso’s advanced external power architecture. In Super Gain mode, it delivers a robust 1900mW + 1900mW @ 32Ω output. Whether you're using full-sized headphones or flagship IEMs, AMP17 ensures fast transient response, powerful bass impact, and an energetic, full-bodied presentation. Note: 12V DC power input is only supported by DX340.

Full Compatibility Across The DX300 Series

Note: DX300 and DX320 do not support external 12V DC power input.

All You Need To Know About The iBasso AMP17

4.4mm Balanced PO Output

THD+N : 116dB (No load)-110dB (600 ohms load) Dynamic Range : 120dB SNR : 122dB Crosstalk : -117dB Frequency Response : 10Hz-40kHz (+/- 0.5dB) Output Impedance : 1.1 ohms Output Power : 1030mW + 1030mW@32 Ohms (Battery Powered) Output Power : 1900mW + 1900mW@32 ohms (12V DC Power Supply)

4.4mm Balanced LO Output

THD+N : -116 (No load) Dynamic Range : 126dB SNR : 123dB Crosstalk : -97dB Output Level : 1.6Vrms (Low gain) 2.6Vrms (Mid gain) 3Vrms (High gain)

Box Contents

1. iBasso AMP17

Have a question? Get in touch!

Check out the most common questions our customers ask. Still have questions? Talk to our Headphone Gurus.

Our customer support is available Monday to Friday: 11am-6pm.

What is the warranty period on the iBasso AMP17 and how do I claim warranty?

The warranty period on iBasso AMP17 is for 1 year. To read more information click here

What makes the iBasso AMP17 different from other iBasso amp cards?

The iBasso AMP17 is the first iBasso amp module to use GaNFET (Gallium Nitride Field Effect Transistor) technology, offering faster switching speeds, lower conduction losses, and significantly improved efficiency and sound performance compared to traditional MOSFET-based amp cards.

What are the key benefits of GaNFET technology in iBasso AMP17?

GaNFETs provide: Higher electron mobility for better efficiency Lower internal resistance and output impedance Faster switching and cleaner signal transitions Reduced ripple interference and distortion These features contribute to a more dynamic, detailed, and distortion-free sound.

What devices are compatible with the iBasso AMP17?

iBasso AMP17 is compatible with: DX340 (fully compatible with 12V DC external power input) DX300 and DX320 (iBasso AMP17 works, but 12V input is not supported)

Can iBasso AMP17 be used with full-sized headphones?

Yes, absolutely. With up to 1900mW + 1900mW @ 32Ω in Super Gain mode (on DX340 with 12V input), the iBasso AMP17 can power most full-sized headphones with authority and ease.

What is the purpose of the 12V DC external power input?

The 12V DC input enables AMP17 to deliver peak performance, especially in Super Gain mode, by providing extra power for more demanding headphones. Note: Only DX340 supports this external power functionality.
